Manzoor Sons one the leading Tent Manufacturer, Tarpaulin Industry & Exporters and also Pioneers in Tentage Industry. Our main Products are:

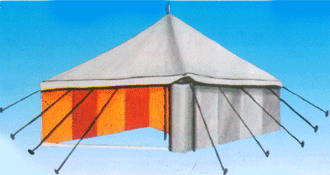

Single Pole / Square / Deluxe Tent





.:. Single Pole / Square / Deluxe Tent

No. of Files Single
No. of Folds Two
Outer Cotton Canvas (White or With Stripes)
Inner Sheeting Cloth, Dyed Multi-Color
Pole Height of Pole 350 cm or As Per Requirement
Walls 180 cm High, Around With Dorr & Four Window in Military Pattern  or As Per Requirement
Size

4 x 4 m    5 x 5 m     6 x 6 m

8 x 8 m    10 x 10 m     12 x 12 m











Miniature Swiss Cottage Tent





.:. Miniature Swiss Cottage Tent

No. of Files

The Tent is Doublefly made throughout of Three Folds of Cloth with a Singlerfield semi-circular open verandah in front and an enclosed bath room at back, tow open saibans at sides Wall 122 cms. (4'-0") high attached to the innerfly, bathroom wall is 152 cms, (5'-0") high and detachable and a shuttered net window in front. Complete with durrie for center room, Bamboo Poles, Pegs, Mallet and Salitas. Tent can be made either round ended or Square ended.

Size

12 x 12 m    14 x 14 m     16 x 16 m    18 x 18 m











Double Roof Tent /180 LBS. Tent  Military Type





.:. Double Roof Tent /180 LBS. Tent  Military Type

No. of Files Double
No. of Folds One or Two Folds in Each Fly
Outer

Contain Single or Double Folds Outer Cotton Canvas Dosuti Grey or Dyed, Water Proof Canvas Plus Sheeting Dyed as required

Inner

Contain Single or Double Folds Outer Cotton Canvas Dosuti Grey or Dyed, Water Proof Canvas inner Sheeting Dyed as required

Size

12 x 12 m     2 Poles Upright    1 Height of Ridge Poles   Walls 1'-6"

14 x 14 m     2 Poles Upright    1 Height of Ridge Poles   Walls 1'-6"

16 x 16 m     3 Poles Upright    2 Height of Ridge Poles   Walls 1'-6"

18 x 18 m     3 Poles Upright    2 Height of Ridge Poles   Walls 1'-6"

20 x 20 m     3 Poles Upright    2 Height of Ridge Poles   Walls 1'-6"











General Service Tent/Chouldari





.:. General Service Tent/Chouldari

No. of Files Single
No. of Folds Single or Double
Outer

Dosuti or Cotton Canvas or Dyed, Water Proof Canvas

Inner

Dosuti or Sheeting Dyed

Size

12 x 12 m     2 Poles Upright    1 Height of Ridge Poles   Walls 1'-6"

14 x 14 m     2 Poles Upright    1 Height of Ridge Poles   Walls 1'-6"

16 x 16 m     3 Poles Upright    2 Height of Ridge Poles   Walls 1'-6"

18 x 18 m     3 Poles Upright    2 Height of Ridge Poles   Walls 1'-6"

20 x 20 m     3 Poles Upright    2 Height of Ridge Poles   Walls 1'-6"











400 LBS. Tent/I.P. Double Fly Military Pattern





.:. 400 LBS. Tent/I.P. Double Fly Military Pattern

No. of Files Double
Outer Fly 23'x19'

Outer Canvas Grey or Dosuti Grey.

Inner Sheeting Dyed or Dosuti Dyed Blue

Inner Fly 23'x19'

Outer Dosuti Grey or  Canvas Inner Fold Dyed Sheeting or Dosut

Walls Two Folds of Cloths Dosuti Grey or Canvas Inner Fold Sheeting or Dosuti Dyed

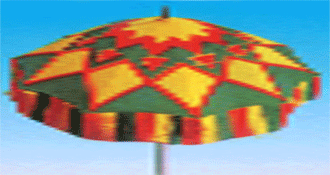

Garden Umbrella/Survey Umbrella





.:. Garden Umbrella/Survey Umbrella

Size 6' Diameter        8' Diameter

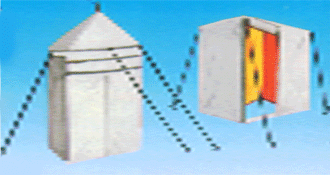

Kuwaiti Deluxe Bath Tent/Necessary/W.C. Tent





.:. Kuwaiti Deluxe Bath Tent/Necessary/W.C. Tent

No. of Files Single
No. of Folds Single or Double as Required
Outer Canvas Grey or Dyed
Inner Sheeting or Dosuti Dyed
Walls 6' High
Size

4 x 4 m    5 x 5 m     6 x 4 m











Store Tent





.:. Store Tent

No. of Files Single
No. of Folds Two
Outer Cotton Canvas Grey
Inner Dosuti or Sheeting Cloth, Dyed or Printed
Walls 5'-8" (Detachable) All Around with Two Doors.
Size 6 x 4 m      6  x 5m        7 x 5 m        5 x 8 m
Size

The main pecularity in this is:

Side Wall Stick 2" Bulges out from Upward & Downward side Walls

Skirting of Hessian Cloth is provided with Lower Side of Wall











Kuwaiti Deluxe Tent





.:. Kuwaiti Deluxe Tent

No. of Files Single
No. of Folds Two
Outer Canvas Grey, Dosuti Grey or Water Proof Canvas
Inner Dosuti or Sheeting Dyed
Walls Two Walls Height 6' and Two Doors.
Size 6 x 4 m      6  x 5m        7 x 5 m        5 x 8 m
Size

30 x 35 m         3 Poles Upright        2 Height of Ridge Poles

35 x 50 m         3 Poles Upright        2 Height of Ridge Poles

40 x 20 m         3 Poles Upright        2 Height of Ridge Poles

40 x 50 m         3 Poles Upright        2 Height of Ridge Poles

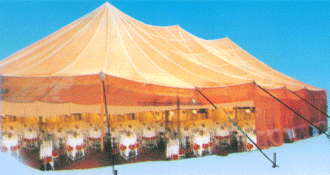

Marquee Tent/Wedding Tent





.:.Marquee Tent/Wedding Tent

No. of Files Single
No. of Folds Single Fold Drill / Net / Velvet
Size

60' x 60'     90' x 90'      90' x 120'      120' x 120'      1200' x 180'











Kabul Tent





.:.Kabul Tent

No. of Files

This Tent is a Doublefly made of Twol Folds of Cloth in the OuterFly and Three Folds in the Innerfly. This Tent can be made with either 122 cms. (4') or 91 cms (3') High Walls, Interiacing System is provided in front and at the back of the Tent. Complete with Poles, Pegs, Mallet and Gunny Salitas.

No. of Folds Single Fold Drill / Net / Velvet
Size

60' x 60'     90' x 90'      90' x 120'      120' x 120'      1200' x 180'











Shelter Tent P.P.





.:. Shelter Tent P.P.

No. of Files Single
No. of Folds Two
Outer Cotton Canvas Grey or Water Proof
Inner Dosuti or Sheeting Cloth, Dyed
Walls 5'-8" (Detachable) All Round with Suitable Doors and Window
Size

24 x 24 m         2 Poles Upright        1 Height of Ridge Poles

30 x 15 m         2 Poles Upright        1 Height of Ridge Poles

40 x 20 m         3 Poles Upright        2 Height of Ridge Poles

50 x 20 m         4 Poles Upright        3 Height of Ridge Poles

General

Hessian Cloth Skirting provided at the bottom of Walls to protect from Sand. To ensure Safety Door Curtains are provided with an inter-lacing system. Complete with Poles, Mallet and Ropes.











Shelter Tent





.:. Shelter Tent

No. of Files Single
No. of Folds Two
Outer Cotton Canvas Grey or Water Proof
Inner Dosuti or Sheeting Cloth, Dyed
Size

18 x 10 m   4 Poles Upright  6'-6" Height of Ridge Poles  Walls 4'-6"

26 x 14 m   4 Poles Upright  7'-6" Height of Ridge Poles  Walls 5'-0"

36 x 17 m   6 Poles Upright  8'-6" Height of Ridge Poles  Walls 5'-6"

40 x 20 m   8 Poles Upright  8'-6" Height of Ridge Poles  Walls 6'-0"

44 x 17 m   8 Poles Upright  8'-6" Height of Ridge Poles  Walls 6'-0"

General

Side Walls are fixed to the fly whereas the Front and Rear Walls are Detachable with Inter Facing system. No. of Bamboo sticks are used in Walls. Hessian Cloth Skirting on the Bottom of Walls are provided to protect from Sand. Complete with Poles, Pegs and Mallet.











40 LBS. Officer Tent- Military Pattern.





.:. 40 LBS. Officer Tent- Military Pattern.

No. of Files Double
No. of Folds Two Folds in each Fly
Outer Fly Contain Single or Double Folds (Cotton Canvas Dosuti Grey or Dyed, Water Proof Canvas Plus Sheeting Dyed as required).
Inner Fly

Contain Single or Double Folds Cotton Canvas Dosuti Grey or Dyed, Water Proof Canvas Plus Sheeting Dyed   or Dosuti as required

Walls 1'-6" High
Size

7' x 6' m         2 Poles Upright        1 Height of Ridge Poles









Shamiana.



.:. Shamiana.

General Two Folds of Cloth, Outside Dosuti Coloured, Inner Cloth Flowered Printed or Gulkari with Frill all round. Complete with Kanat Ropes, Bamboo Poles and Pegs.
Size

15' x 15'              30' x 15'           30' x 30'
